Early Fox 12 gauge identification

Post by Birddog17! »

I am a brand new member to this site, I found it after purchasing a, what I believe is a very old Fox. Not sure anyone can help. The serial number on the trigger guard is # 2992, the # on the Forend is #2993 and the number stamped on the barrel is #2993 , the number stamped on the breach is 2993 A. What possible year could this be and where else should I be looking. I have read about Mr. Callahan, who has since required. Any help would be greatly appreciated.
Researcher
Posts: 5825
Joined: Sun Jan 07, 2007 7:18 pm
Location: WA/AK
Has thanked: 312 times
Been thanked: 1644 times

Re: Early Fox 12 gauge identification

Post by Researcher »

The working theory is that receivers with serial numbers 1 to 3000 were made for the A.H. Fox gun Co. when it was at Wayne & Bristol Streets during 1905 and most of 1906. We do find some guns in this serial number range that appear to have been finished after the move to the factory at North 18th Street & Windrim Avenue in late 1906. We'll need to see some good pictures of your gun to make any further assessment. It appears that when the next batch of 12-gauge receivers was forged the A.H. Fox Gun Co. began numbering them at 7000. The surviving production cards start at 9648, so everything about these early guns is speculation from years of observation.
Share the knowledge
User avatar
fox-admin
Site Admin
Posts: 3811
Joined: Fri Jan 05, 2007 4:46 pm
Has thanked: 519 times
Been thanked: 1405 times

Re: Early Fox 12 gauge identification

Post by fox-admin »

Errors were made stamping serial numbers pull off the trigger guard and look at the number on the bottom side.
Birddog17!
Posts: 28
Joined: Sat Mar 27, 2021 5:21 pm

Re: Early Fox 12 gauge identification

Post by Birddog17! »

All of the numbers are 2993, I mis wrote one of the numbers as 2992, all are 2993.I will try to upload some photos now.
Birddog17!
Posts: 28
Joined: Sat Mar 27, 2021 5:21 pm

Re: Early Fox 12 gauge identification

Post by Birddog17! »

See attached photos
Attachments
44whiskey
Posts: 1012
Joined: Sun Dec 13, 2020 11:48 am
Location: theater district cut n shoot texas
Has thanked: 2077 times
Been thanked: 230 times

Re: Early Fox 12 gauge identification

Post by 44whiskey »

welcome birddog 17 all the best 44whiskey
Birddog17!
Posts: 28
Joined: Sat Mar 27, 2021 5:21 pm

Re: Early Fox 12 gauge identification

Post by Birddog17! »

Another photo, trigger guard serial number
Attachments
Birddog17!
Posts: 28
Joined: Sat Mar 27, 2021 5:21 pm

Re: Early Fox 12 gauge identification

Post by Birddog17! »

Another photo
Attachments
Birddog17!
Posts: 28
Joined: Sat Mar 27, 2021 5:21 pm

Re: Early Fox 12 gauge identification

Post by Birddog17! »

Another photo
Attachments
Birddog17!
Posts: 28
Joined: Sat Mar 27, 2021 5:21 pm

Re: Early Fox 12 gauge identification

Post by Birddog17! »

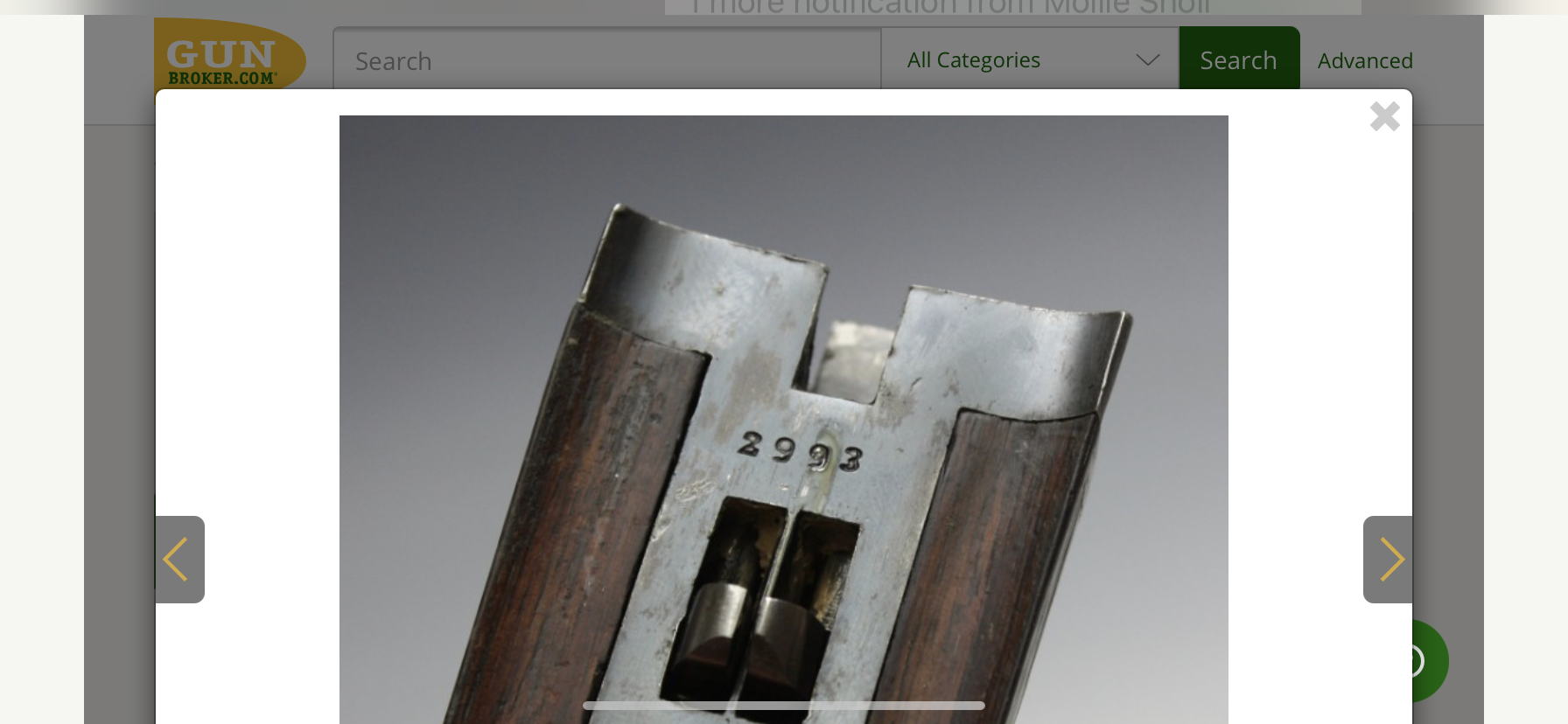

Another photo, Forend
Attachments
Birddog17!
Posts: 28
Joined: Sat Mar 27, 2021 5:21 pm

Re: Early Fox 12 gauge identification

Post by Birddog17! »

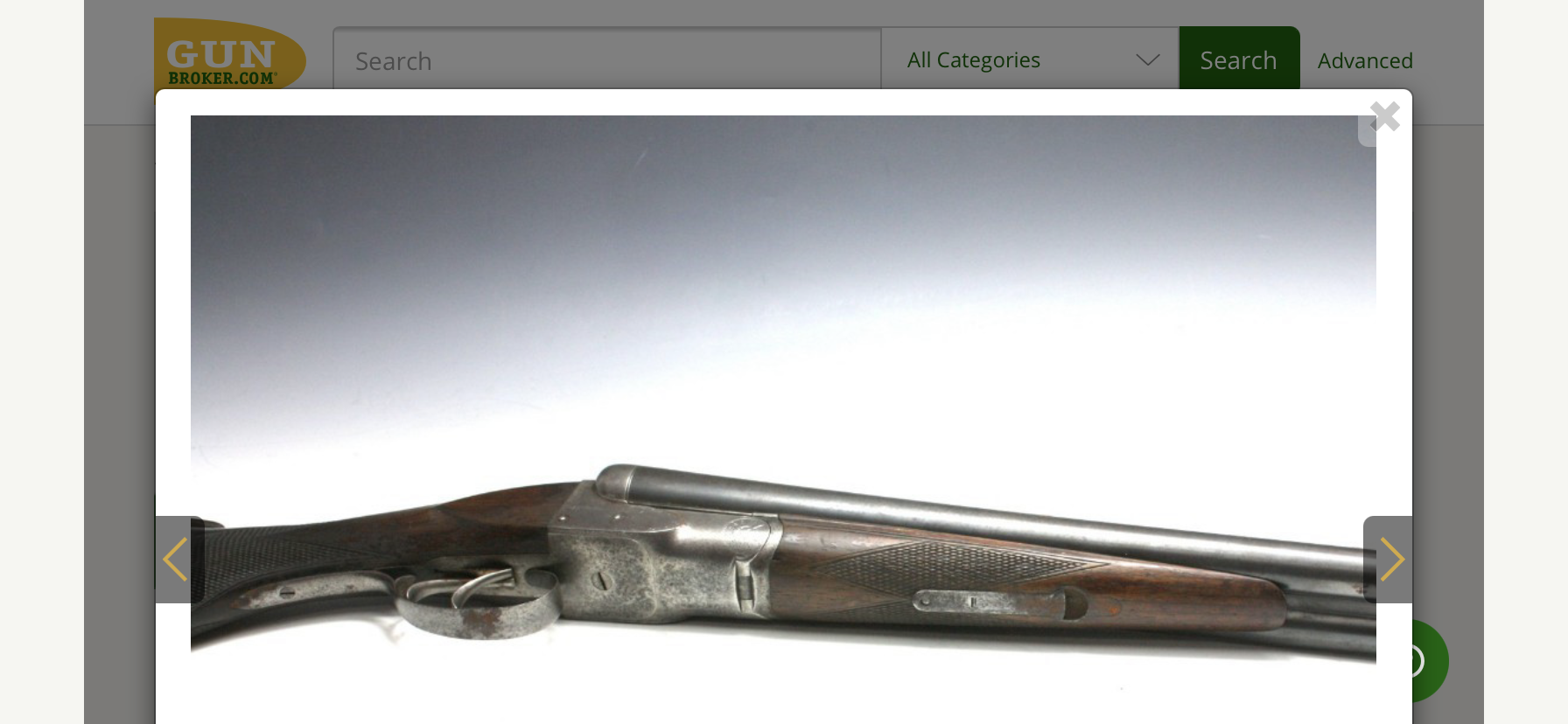

Another of #2993 Fox
Attachments
Birddog17!
Posts: 28
Joined: Sat Mar 27, 2021 5:21 pm

Re: Early Fox 12 gauge identification

Post by Birddog17! »

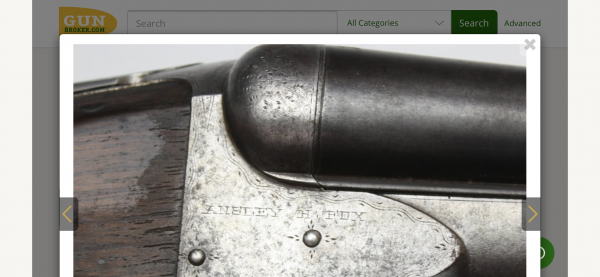

Another photo Fox #2993
Attachments
Birddog17!
Posts: 28
Joined: Sat Mar 27, 2021 5:21 pm

Re: Early Fox 12 gauge identification

Post by Birddog17! »

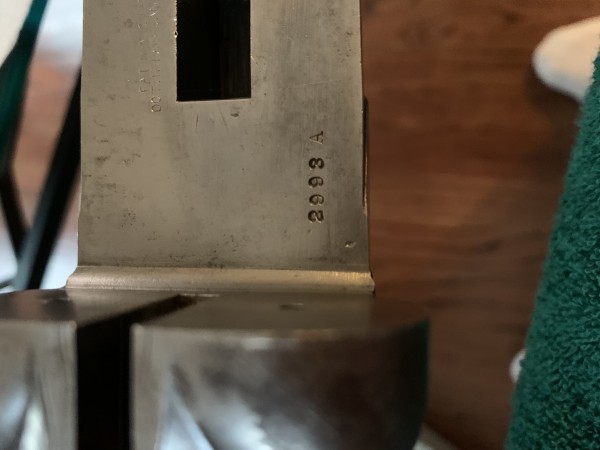

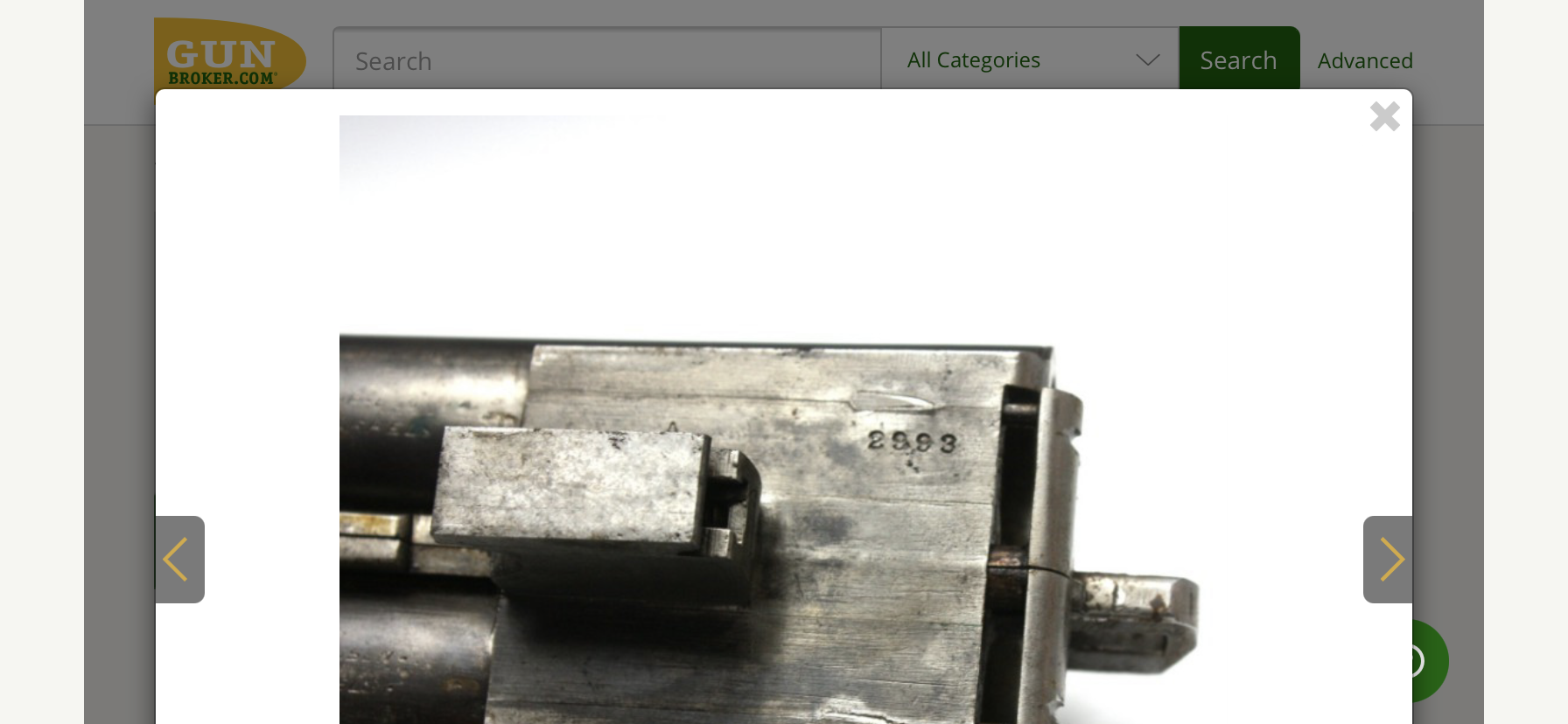

Breech #2993 A stamp
Attachments
Birddog17!
Posts: 28
Joined: Sat Mar 27, 2021 5:21 pm

Re: Early Fox 12 gauge identification

Post by Birddog17! »

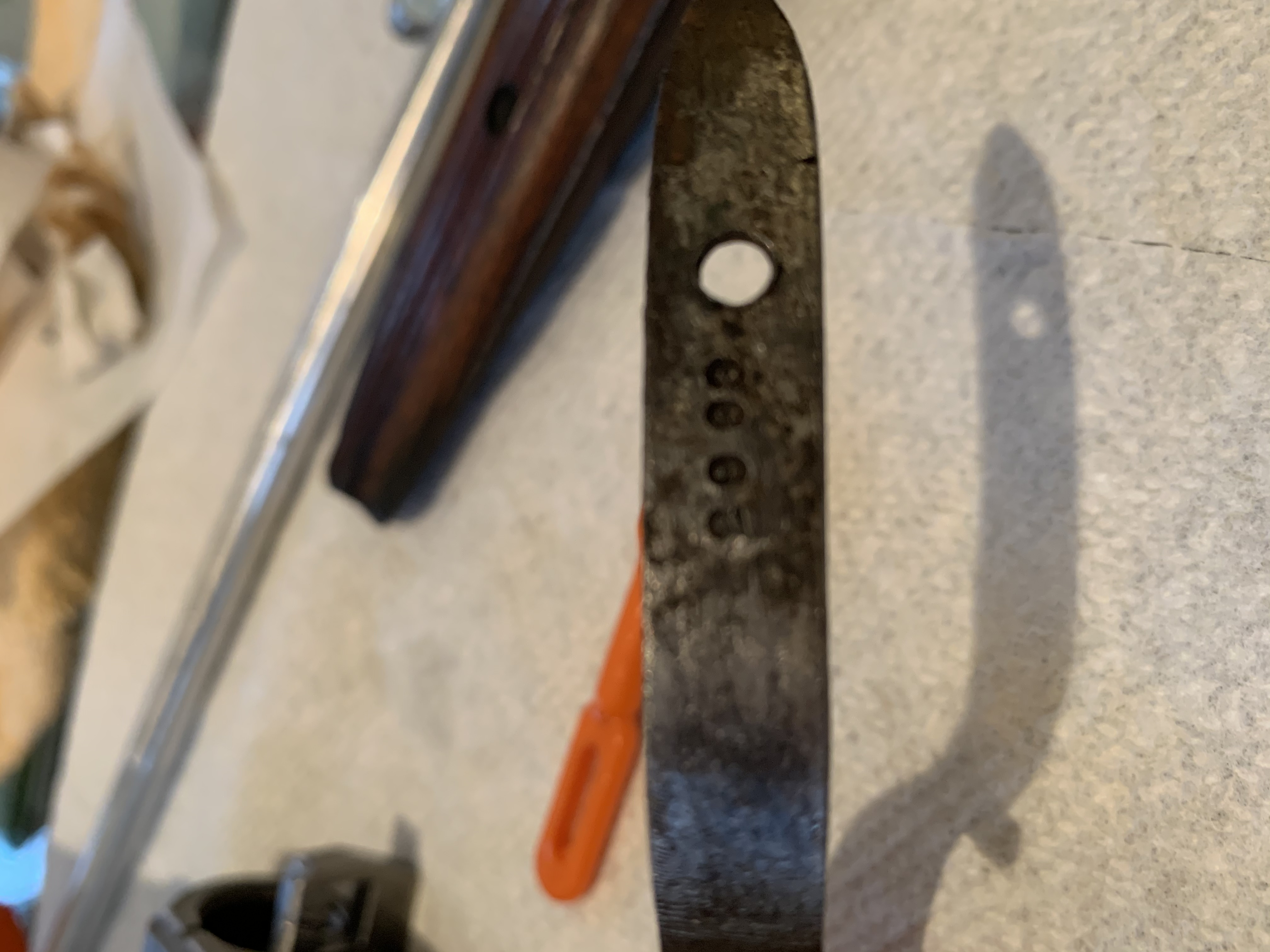

This is the numbers from under the trigger guard #2993
Attachments
#2993
#2993
Birddog17!
Posts: 28
Joined: Sat Mar 27, 2021 5:21 pm

Re: Early Fox 12 gauge identification

Post by Birddog17! »

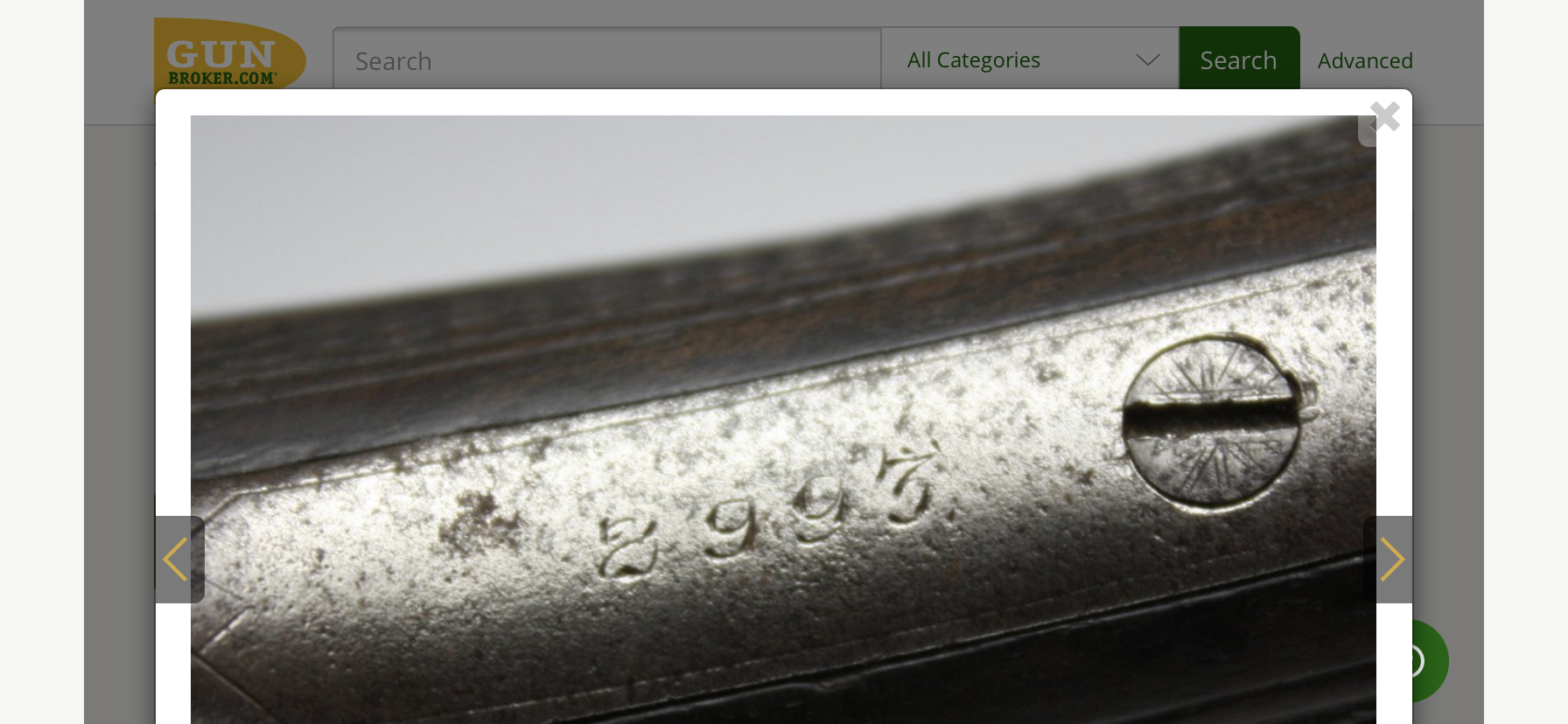

More of #2993
Attachments
