Fox DE Splinter Forearm

Post by Bear »

Looking for a picture and deminisions of a first generation Fox DE grade splinter forearm of the 1906 to 1912.
Top
Researcher
Posts: 5795
Joined: Sun Jan 07, 2007 7:18 pm
Location: WA/AK
Has thanked: 305 times
Been thanked: 1599 times

Re: Fox DE Splinter Forearm

Post by Researcher »

I don't have a decent picture on hand, but essentially a regular size Philadelphia 12-gauge forearm with about a 1/8 inch wide border around the lever and about the same around the outside and checkered all over. Just like the forearm for my early C-Grade --

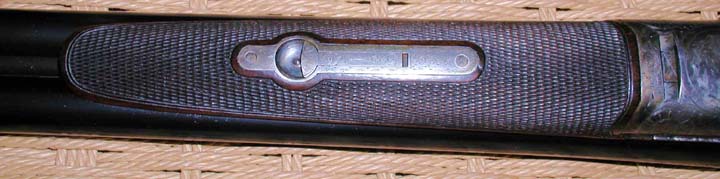

1733 03 12-ga C-Grade forearm.jpg
except a couple lines-per-inch finer checkering. As you get closer to 1912, the band of bare wood at the base of the forearm (against the forearm iron) gets a bit wider.
