Early 20 bore CE Straight Grip - Restoration Update

Postby somo_setters » Mon Dec 10, 2018 2:27 pm

I posted some pics of this gun earlier in the year. The gun is Serial #3 and is a two barrel set, and built as an ultralight (per notes on the card, to be built as light as possible).

Unfortunately, the stock and forend of barrel set #1 are pretty much toast so I chose to replace the wood on the original gun. It will be done in the spirit of the original, same checkering and shape, but made to my dimensions. The receiver is in good shape (30-40% color) and will remain as I found it.

We are now finished with inletting and shaping, so on to checkering and finish. Attached are a few pics of the gun as found, along with some of the current restoration.

IMG_0257 (1).jpg
Action


Barrels


Stock2


Action2
somo_setters

Posts: 10
Joined: Thu Aug 10, 2017 8:23 pm
Location: Tomahawk, WI

Re: Early 20 bore CE Straight Grip - Restoration Update

Postby fox-admin » Mon Dec 10, 2018 2:48 pm

Nice, good luck with the restoration. Craig
fox-admin
Site Admin

Posts: 2657
Joined: Fri Jan 05, 2007 5:46 pm

Re: Early 20 bore CE Straight Grip - Restoration Update

Postby Jim Cloninger » Mon Dec 10, 2018 3:14 pm

Wow, # 3! That is something. What are the lengths of the barrels? Jim
Goodbye Mandy, once in a life time hunting dog. I miss you every day.
Jim Cloninger

Posts: 1023
Joined: Wed Jul 25, 2007 12:14 pm
Location: California

Re: Early 20 bore CE Straight Grip - Restoration Update

Postby somo_setters » Mon Dec 10, 2018 3:26 pm

Jim: Both sets are 28", 3 weight barrels.
somo_setters

Posts: 10
Joined: Thu Aug 10, 2017 8:23 pm
Location: Tomahawk, WI

Re: Early 20 bore CE Straight Grip - Restoration Update

Postby Jeff S » Mon Dec 10, 2018 5:57 pm

That's going to be a sweet 20 ga.!
Jeff S

Posts: 1038
Joined: Tue Jan 06, 2015 11:59 am
Location: Grand Rapids, Michigan

Re: Early 20 bore CE Straight Grip - Restoration Update

Postby vaturkey » Tue Dec 25, 2018 6:43 pm

Love it.
User avatar
vaturkey

Posts: 1912
Joined: Wed Nov 26, 2008 7:33 pm
Location: Hamilton, VA

Re: Early 20 bore CE Straight Grip - Restoration Update

Postby Foxnut » Thu Dec 27, 2018 9:13 pm

Keep us updated and post pics as the restoration moves forward. Glad she will get a second chance! That is a special 20 gauge!
Regards - Foxnut
User avatar
Foxnut

Posts: 501
Joined: Wed Jan 17, 2007 12:53 am
Location: Southwest, MI

Re: Early 20 bore CE Straight Grip - Restoration Update

Postby somo_setters » Wed Jan 23, 2019 12:21 pm



Replaced stock and forend #1 are nearing completion. Note the checkering pattern, which is original to the gun. From my research there was quite a bit of variation in checking patterns in the early small bores.
somo_setters

Posts: 10
Joined: Thu Aug 10, 2017 8:23 pm
Location: Tomahawk, WI

Re: Early 20 bore CE Straight Grip - Restoration Update

Postby larrys » Wed Jan 23, 2019 6:17 pm

Very nice gun, when you have it finished come down to Wausau and give it a test drive. Lots of sxs guys and Fox folks there.
larrys

Posts: 19
Joined: Fri Dec 22, 2017 5:09 pm

Re: Early 20 bore CE Straight Grip - Restoration Update

Postby vaturkey » Wed Jan 23, 2019 6:26 pm

Curious. Some early CE grades had the ebony tip and some didn't. How about your two foreends?

PS. Looks absolutely super.
User avatar
vaturkey

Posts: 1912
Joined: Wed Nov 26, 2008 7:33 pm
Location: Hamilton, VA

Re: Early 20 bore CE Straight Grip - Restoration Update

Postby somo_setters » Thu Jan 24, 2019 12:51 am


This gun did not have ebony inserts. This pic is of barrel set #2 (refurbishing this forend).
somo_setters

Posts: 10
Joined: Thu Aug 10, 2017 8:23 pm
Location: Tomahawk, WI

Re: Early 20 bore CE Straight Grip - Restoration Update

Postby somo_setters » Fri Apr 05, 2019 4:28 pm

Fox 200003.jpg

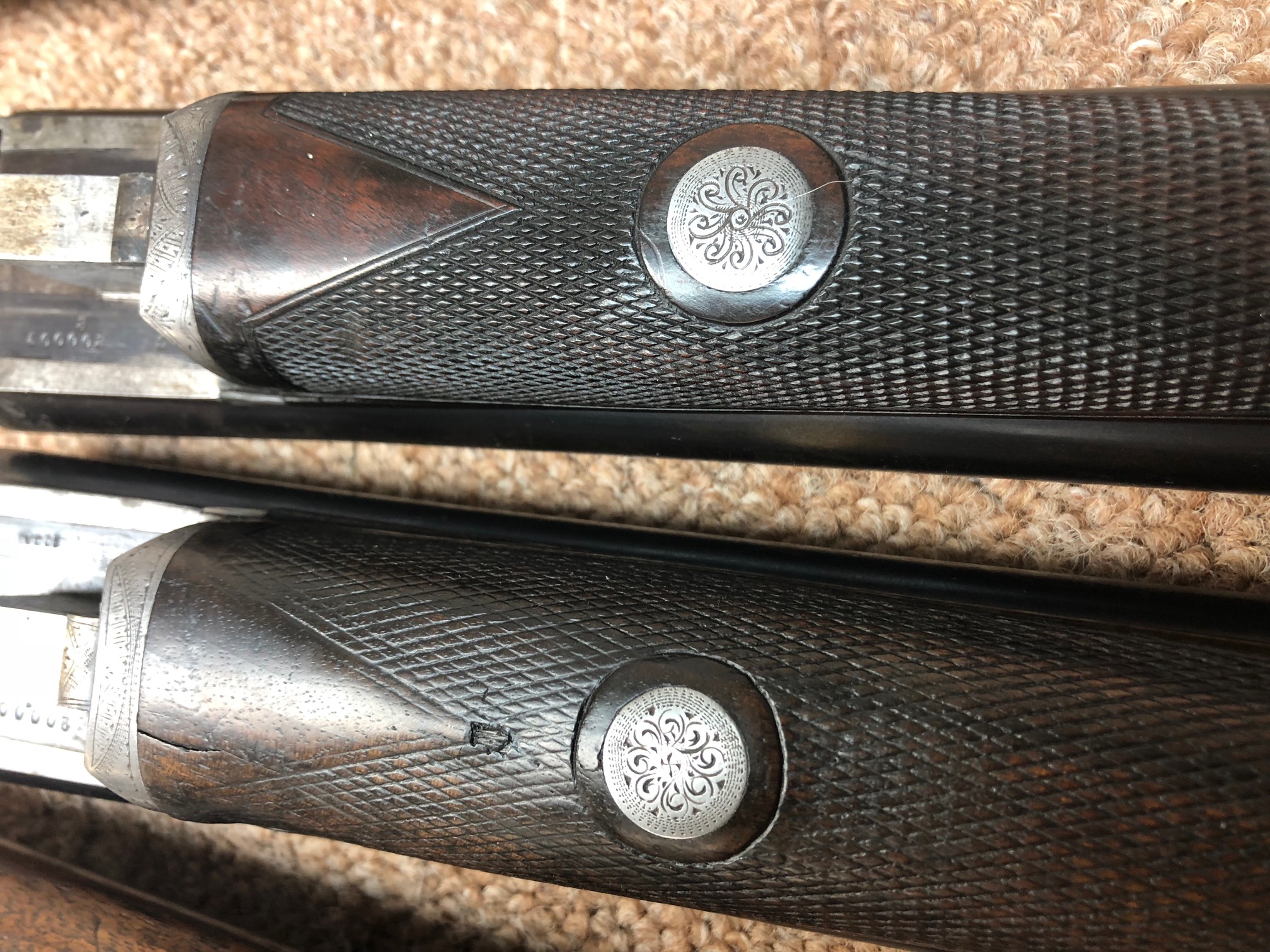

Here are the two completed forends. Top is the original, barrel set #2, restored. Bottom is the newly built forend for barrel set #1. I thought they matched well. Excited to get it in my hands.
somo_setters

Posts: 10
Joined: Thu Aug 10, 2017 8:23 pm
Location: Tomahawk, WI

Re: Early 20 bore CE Straight Grip - Restoration Update

Postby Researcher » Fri Apr 05, 2019 4:53 pm

Except for 200002 which now sports a Deeley style forearm with the black tip, the other early CE-Grade 20-gauge guns I've saved pictures of are all without a black tip --

200012 14.jpg
200012


This one has the "other" style ejectors and hence no escutcheon.

200086 01 CE-Grade.jpg
200086


200109 13.jpg
200109


Can anyone add some more to this inventory? The next CE-grade 20-gauge I have pictures of is in the 202xxx range.
Share the knowledge
User avatar
Researcher

Posts: 4133
Joined: Sun Jan 07, 2007 8:18 pm
Location: WA/AK

Re: Early 20 bore CE Straight Grip - Restoration Update

Postby Folson » Tue May 07, 2019 5:53 am

This ejectors style is pretty rare, isn't it? It looks amazing.
Folson

Posts: 1
Joined: Sat May 04, 2019 9:15 am

Re: Early 20 bore CE Straight Grip - Restoration Update

Postby somo_setters » Fri May 24, 2019 10:23 am

Project is complete. Very pleased with the restoration.





somo_setters

Posts: 10
Joined: Thu Aug 10, 2017 8:23 pm
Location: Tomahawk, WI
